CNC MACHINE SHOP

CNC Machine shop - Number one CNC Machine shop in UAE

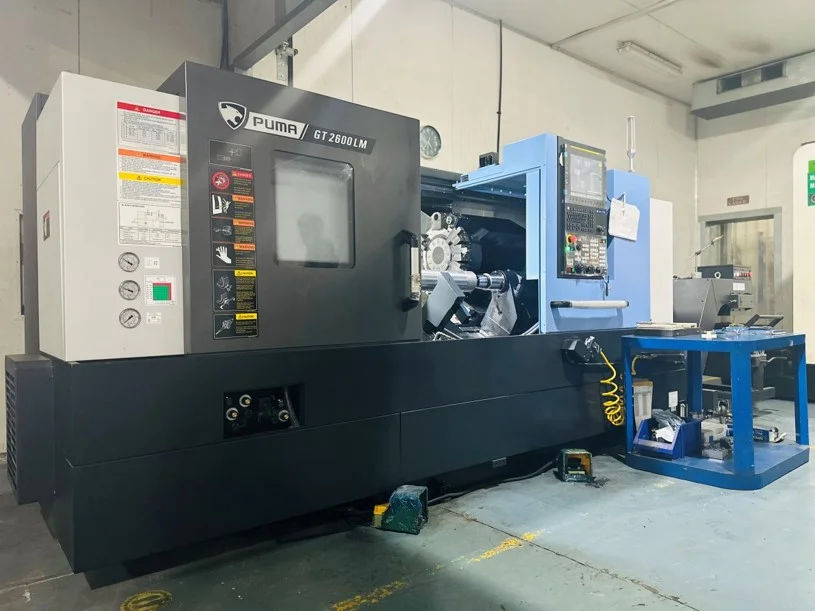

Specifications
S NO Description Parameters
01 Swing Diameter 400
02 Maximum Boring Length 325
03 Maximum Turning Dia 400
04 Maximum Turning Length 650

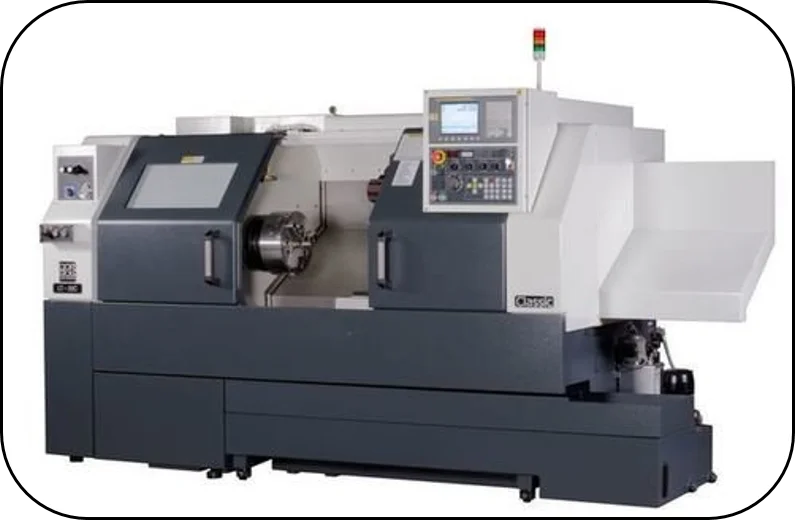

Specifications
S NO Description Parameters(mm)
01 Swing Diameter 550
02 Maximum Turning Dia 410
03 Maximum Turning Length 1030
04 Maximum Boring Length 500

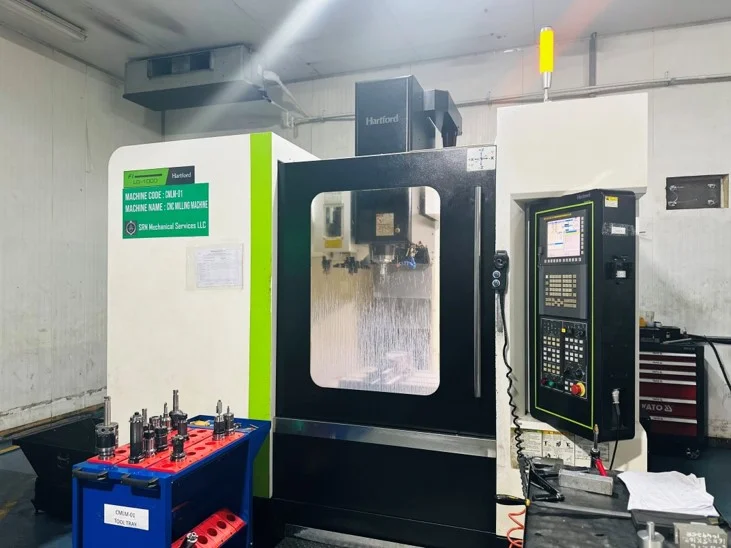

Specifications
S NO Description Parameters(mm)
01 Table Size 1150 X 510
02 X Y Z Travels 1000 / 510 /630
03 No of Axis 4

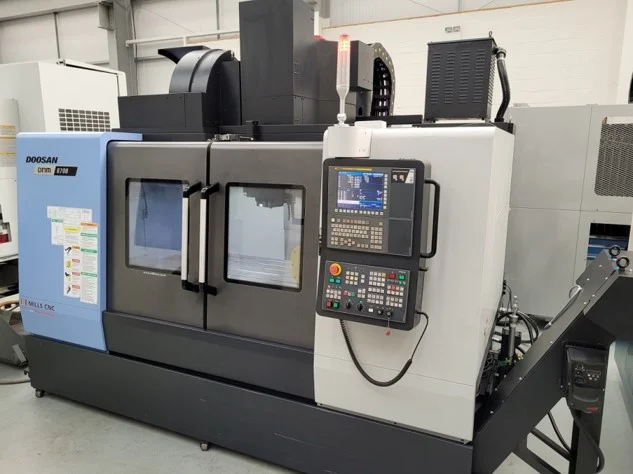

Specifications
S NO Description Parameters(mm)
01 Table Size 1300 X 570
02 X Y Z Travels 1050 / 570 /510
03 No of Axis 4

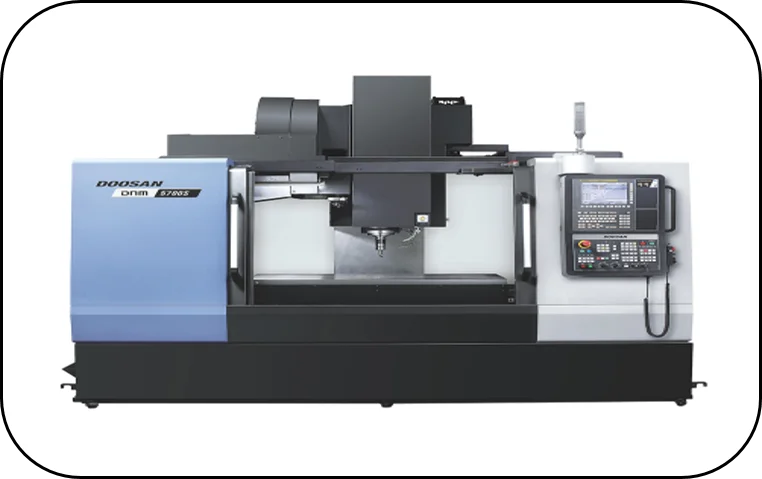

Specifications
S NO Description Parameters(mm)
01 Table Size 1300 X 570
02 X Y Z Travels 1050 / 570 /510
03 No of Axis 5

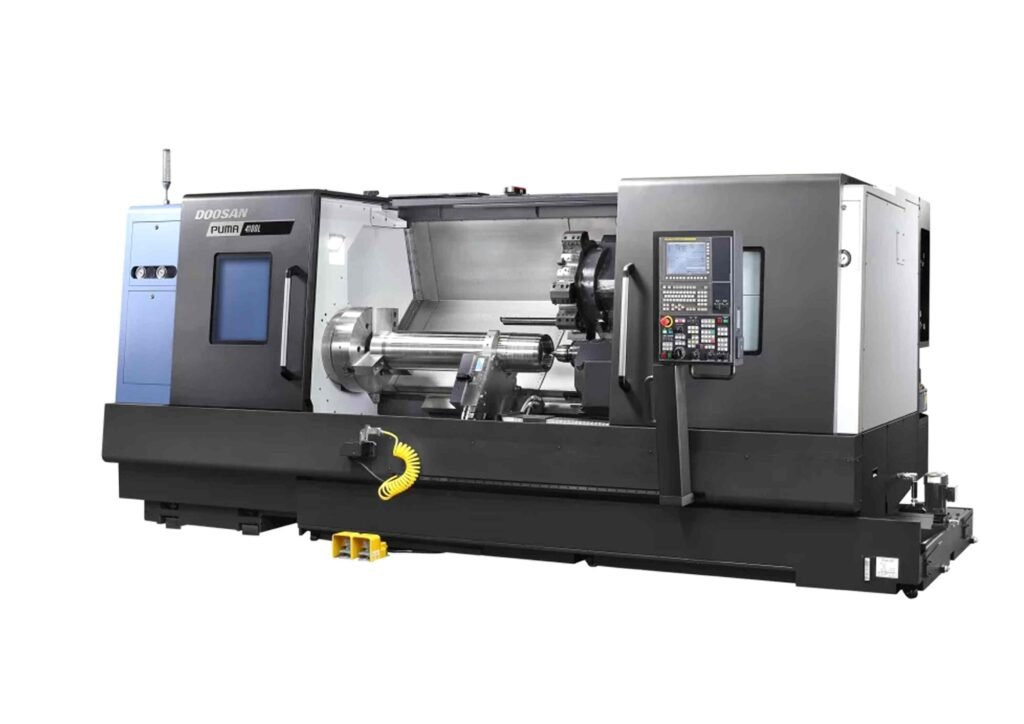

Specifications
S NO Designation Size
01 Max. Turning Dia 550mm
02 Max. Turning Length 3120mm
03 Max. Boring length 1500mm
04 Chuck size 15"

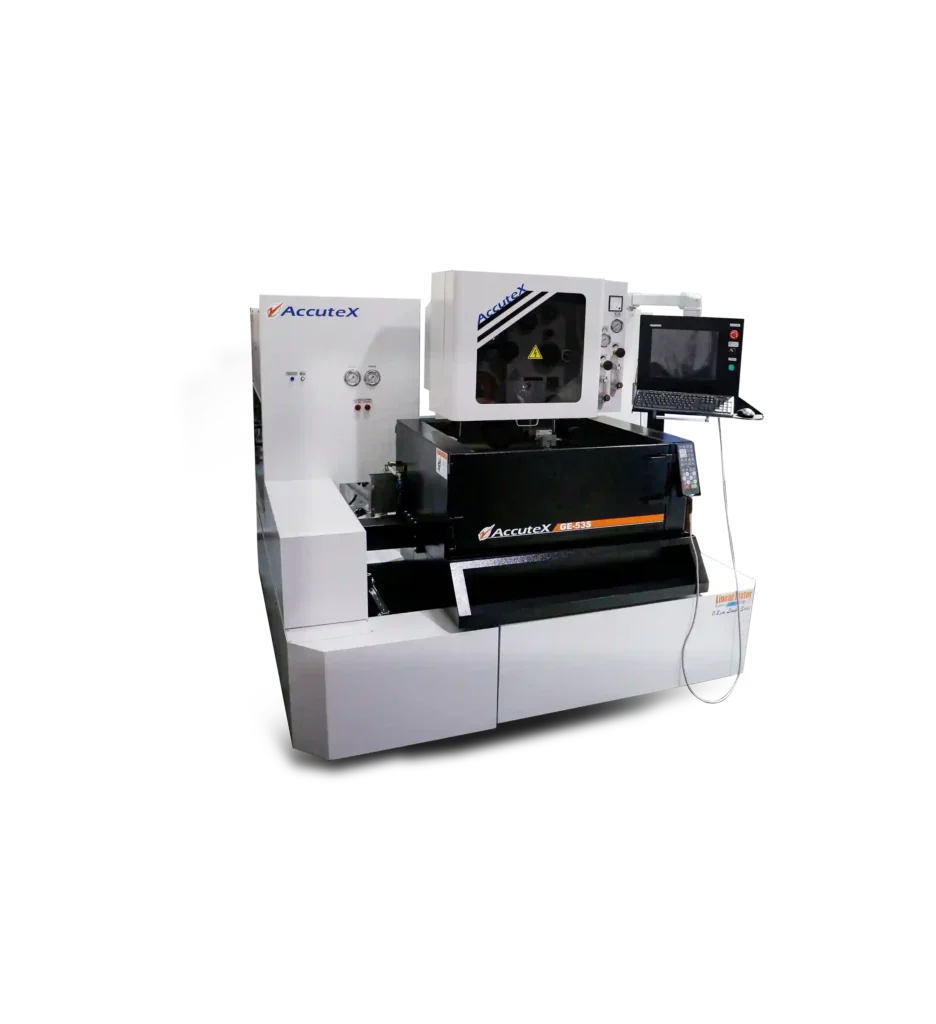

Specifications
S NO Description Size
01 Max.Work Piece Size L-830mm
W-600mm
H-215mm
02 Max. Work Piece Weight 400kg
03 X x Y stroke 400mm X 300mm
04 U x V Stroke 60mm
05 Z Stroke 220mm
